Technical features

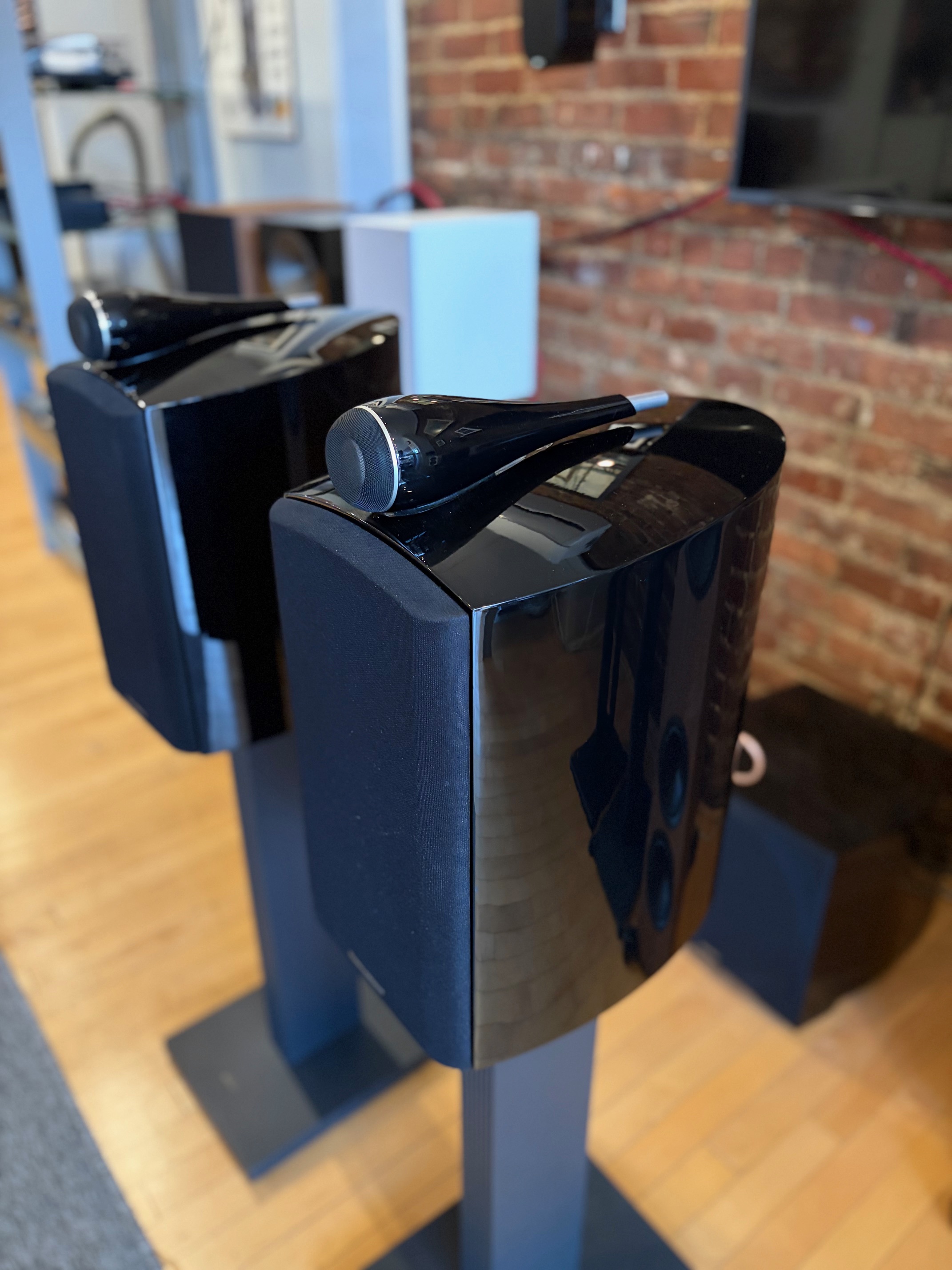

Free-mounted diamond dome tweeter

Nautilus™ tube tweeter loading

Quad magnet tweeter motor

Kevlar® brand fibre cone bass/midrange

Matrix™ cabinet

Flowport™

Description

2-way vented-box system

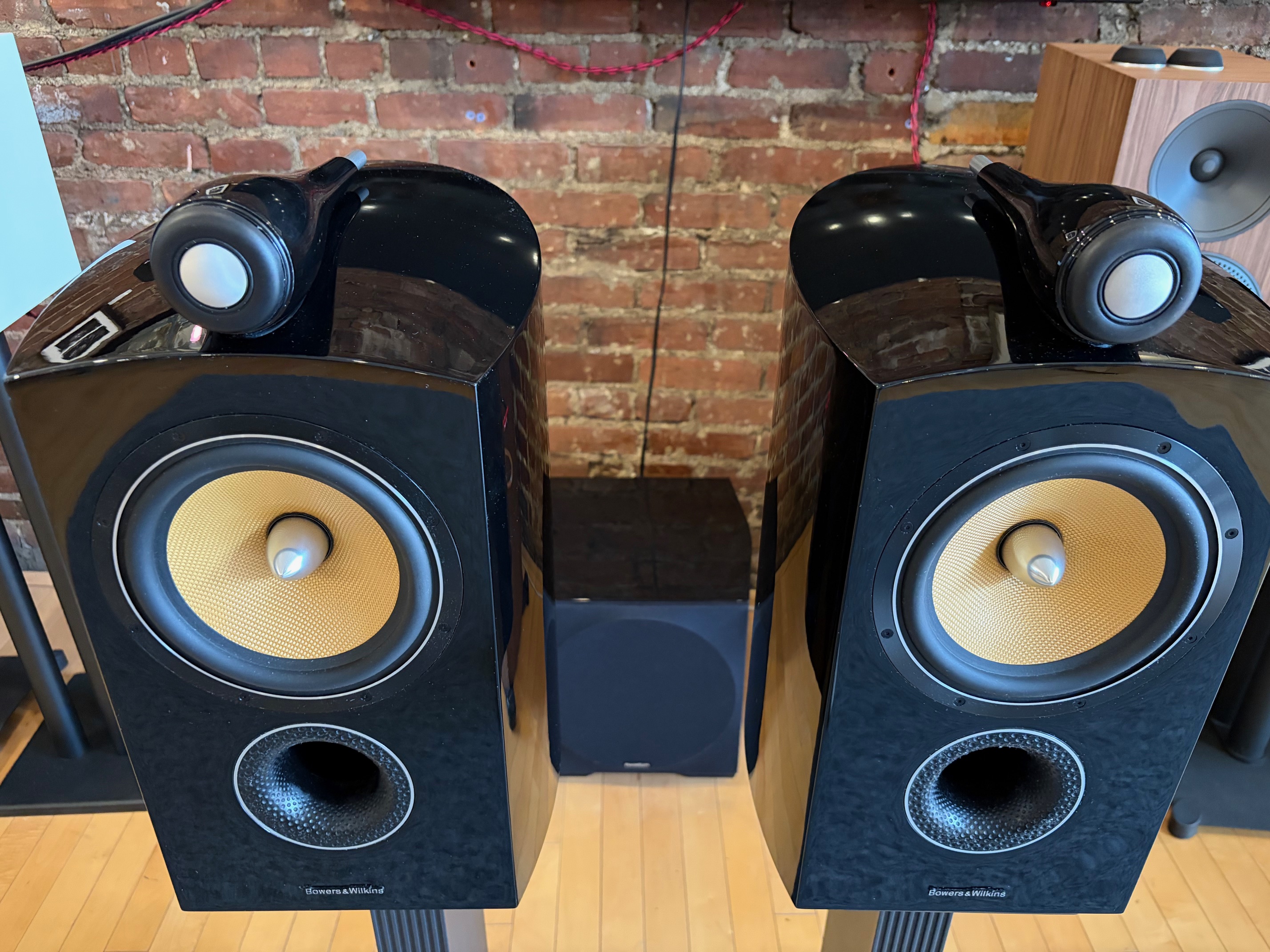

Drive units

1x ø25mm (1 in) diamond dome high-frequency

1x ø165mm (6.5 in) woven Kevlar® cone bass/midrange

Frequency range

-6dB at 42Hz and 33kHz

Frequency response

49Hz - 28kHz ±3dB on reference axis

Within 2dB of reference response

Dispersion

Horizontal: over 60º arc

Vertical: over 10º arc

Sensitivity

88dB spl (2.83V, 1m)

Harmonic distortion

2nd and 3rd harmonics (90dB, 1m)

<1% 100Hz - 100kHz

<0.5% 150Hz - 100kHz

Nominal impedance

8Ω (minimum 4.7Ω)

Crossover frequency

4kHz

Recommended amplifier power

50W - 120W into 8Ω on unclipped programme

Dimensions

Height: 418mm (16.5 in)

Width: 238mm (9.4 in)

Depth: 351mm (13.8 in)

Net weight

12kg (26 lb)

‍
