CONSTRUCTION DETAILS:

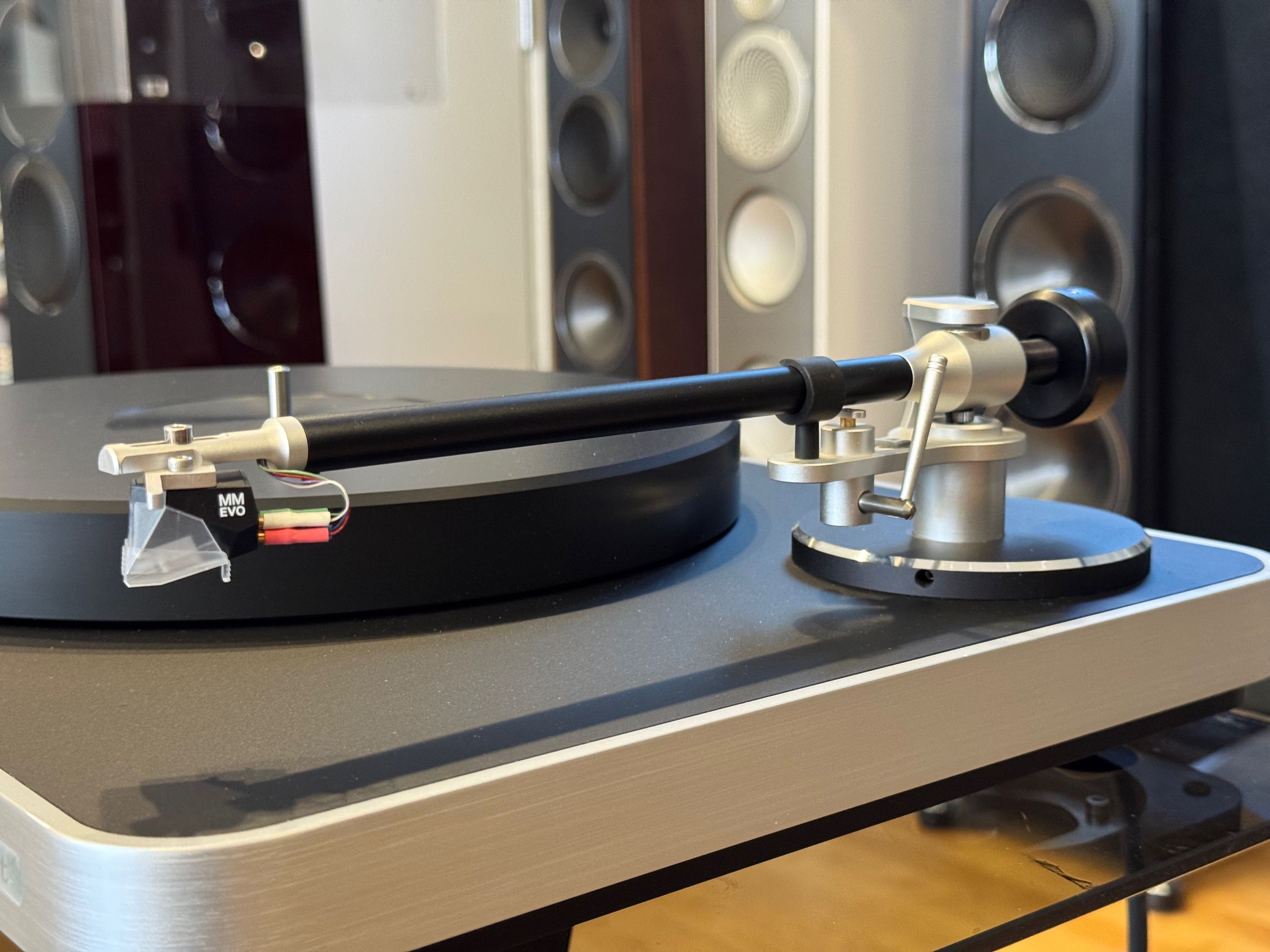

The Concept TONEARM utilizes a frictionless magnetic bearing, delivering exceptionally low distortion and outstanding performance.

Resonance-optimised turntable; chassis comprises medium-density wood fibre (silver / black)

upper layer incorporates high-tech satined plastic compound.

SPEED OPTIONS:33 ⅓, 45, 78rpm

DRIVE UNIT:Decoupled and resonance damped 12V DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies.

BEARING:Polished and tempered steel spindle in a sintered bronze housing, running on a teflon thrust-pad.

PLATTER:30mm / 1.18 inch main platter, made out of synthetic material with high-density and excellent dimension /precision CNC machined surface aluminium sub platter

SPEED ACCURACY (MEASURED):± 0.05%

POWER CONSUMPTION:Max. consumption: 2.5 wattsConsumption in operation: 0.5 wattsOff mode: 0.0 watts

TOTAL WEIGHT:Approx. 7.5kg  (incl. tonearm and cartridge)

DIMENSIONS (W/D/H):Approx. 16.54 × 13.78 × 4.92 inches (with tonearm)

‍

‍

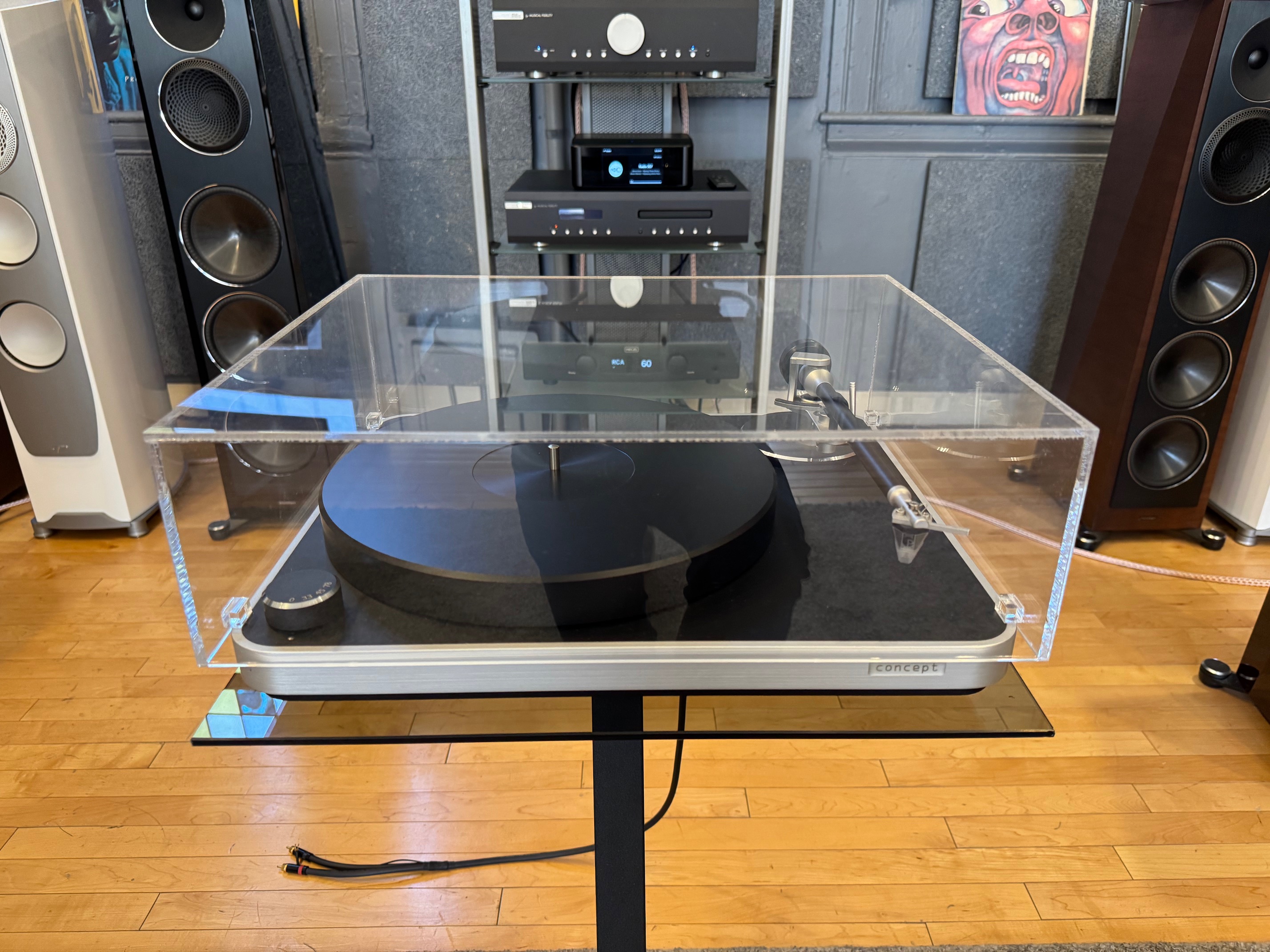

Unit comes with brand new Pro-Ject Pick It Evo MM ( Custom made by Ortofon ,similar to Ortofon 2M Red but with 7mV output) cartridge, custom made dust cover and manual.

serial no: 0535869

‍
