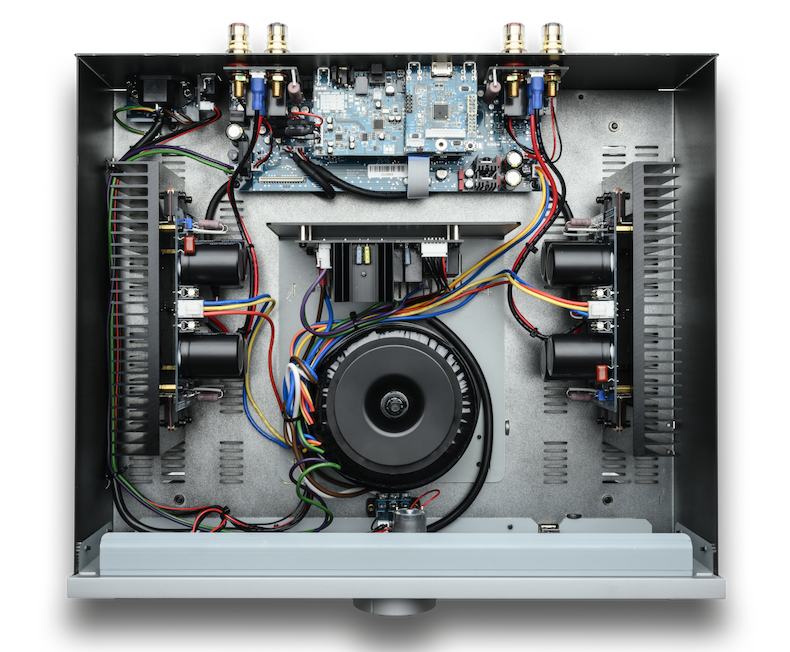

Building on the outstanding success of its predecessor, the M5si, the M5xi is a major reinvention of the M5 formula. The preamp, poweramp, digital and phono sections are completely new and now much closer to our legendary TITAN power amp topology. In fact, the M5xi now commands the same topology as previously used in the M6si, including all the improvements for the newly released M6xi update, just tuned for less power output. This makes the TITAN formula accessible at a new price-point as Musical Fidelity pushes to make true high-end amplifiers as affordable as never before.
Modern systems demand modern connectivity. The M5xi now features HDMI eARC, allowing effortless integration with TVs and home theatre systems while delivering true high-end stereo performance. Alongside this, new coaxial and optical digital inputs expand connectivity for a wide range of digital sources, complementing the already established high-resolution USB input.
A completely new feature is the high-quality isolated USB power output. Designed as a dedicated, ultra-clean power supply, it allows you to power modern USB streamers directly from the amplifier. The result is simple system integration and a noticeable upgrade in performance for your favourite streaming source.
For professional installations and advanced system control, the M5xi now includes RS232 integration, making it ideal for custom installations and sophisticated home audio systems.
M5xi - Specifications
Output
Continuous Power, both channels driven @ 1% THD, 1kHz:
160W per channel into 8 Ohms;
240W per channel into 4 ohms
Continuous Power, both channels driven @ 0.09% THD, 20Hz to 20 kHz:
140W per channel into 8 Ohms;
210W per channel into 4 ohms
Peak Power, both channels driven @ 1% THD, 1kHz:
190W per channel into 8 Ohms;
320W per channel into 4 ohms
36 Volts RMS, 20Hz to 20 kHz; onset of clipping
101 Volts peak to peak
Current 45 Amps peak to peak
Damping factor 47 (8 Ohms)
Output devices 2 pairs per channel
Line input
THD+N < 0.009 % typical, 20Hz to 20 kHz
Signal / noise ratio > 105dB ‘A’-weighted
Input impedance 40 k Ohms
Frequency response +0, –0.1dB, 10Hz to 20 kHz

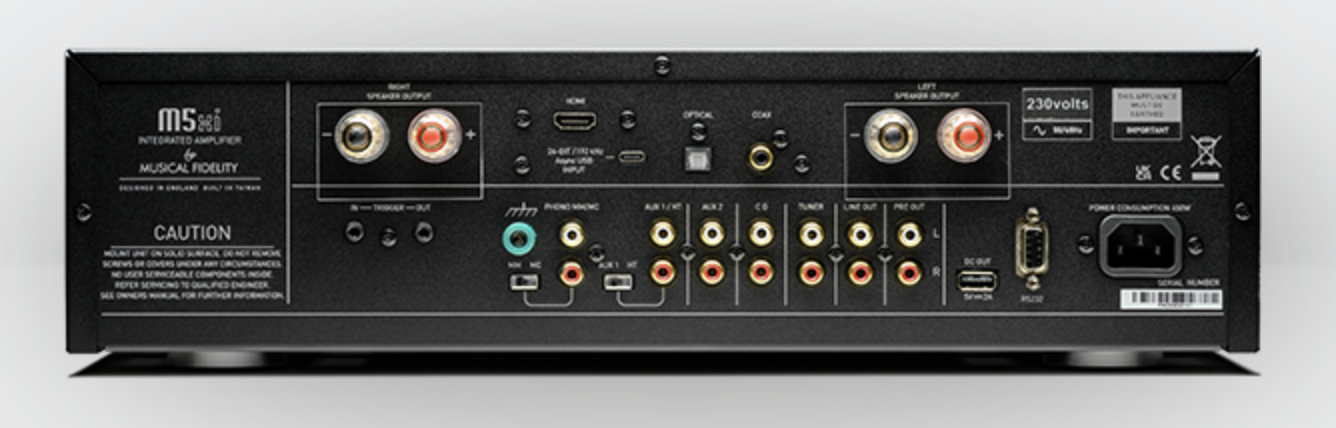

Connections
4x Line level RCA inputs
1x HDMI input
1x Coaxial input
1x Optical input
1x Phono MM/MC input
1x USB type ‘C’ connector - up to 24-bit/192kHz
Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
1 pair line level RCA connectors, preamp outputs
Speaker out: 2 pairs 4mm banana plug
1x USB A 5V/2A power output
1x RS232 D-sub connector
Trigger In & Out
Phono Input
Sensitivity (nominal): 3mV MM / 0.4mV MC (for 300mV nominal)
Gain MM/MC: 40dB / 60dB
Signal / noise ratio: >87dB ‘A’-weighted
Input capacitance: 220pF
Input impedance: 50k Ohms MM / 1k Ohm MC
Frequency response: RIAA/IEC ±0.4dB, 20Hz - 20 kHz
